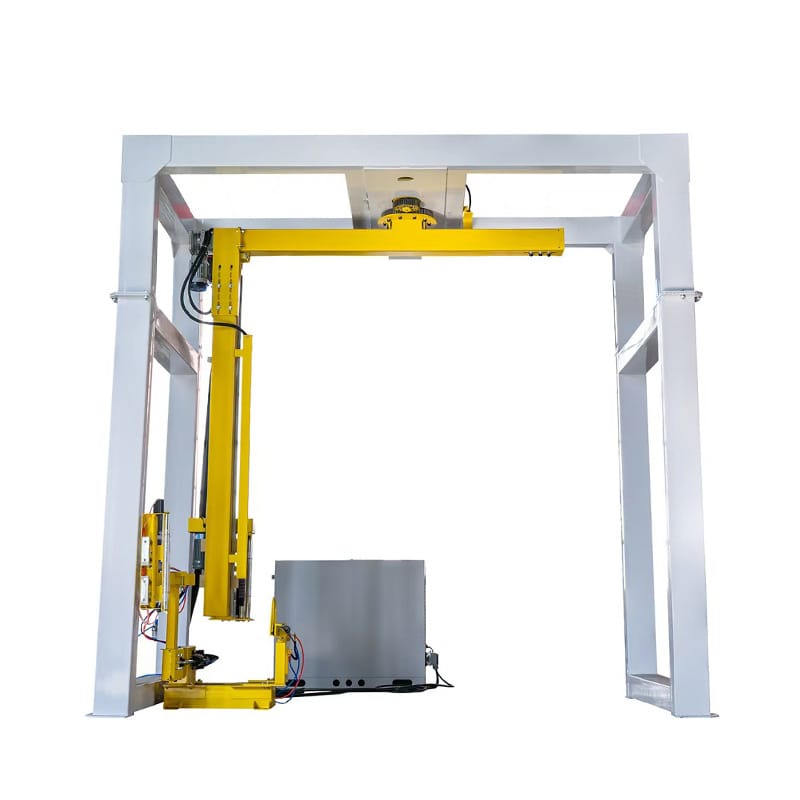

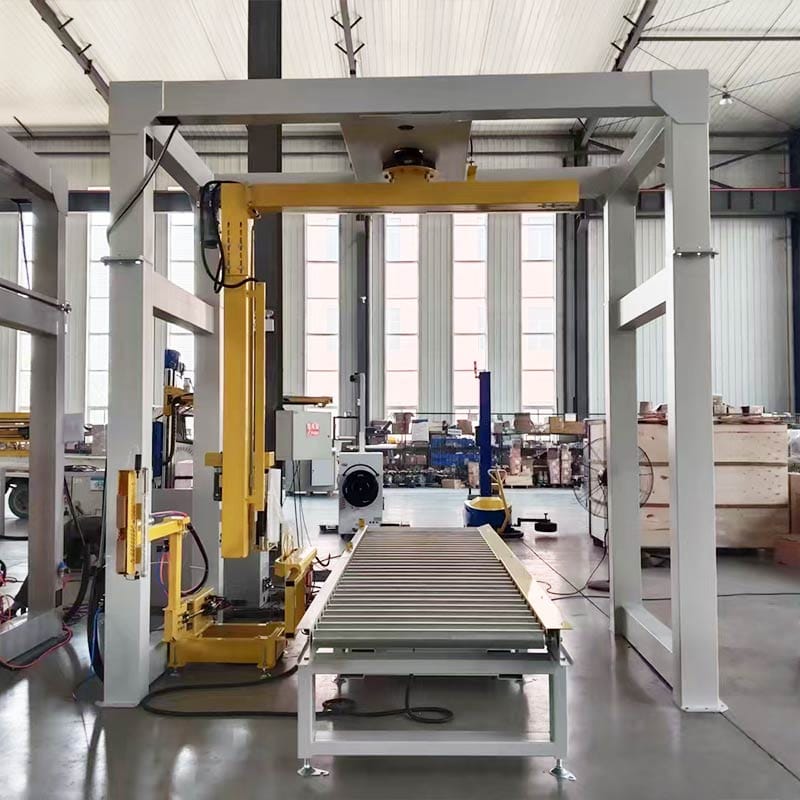

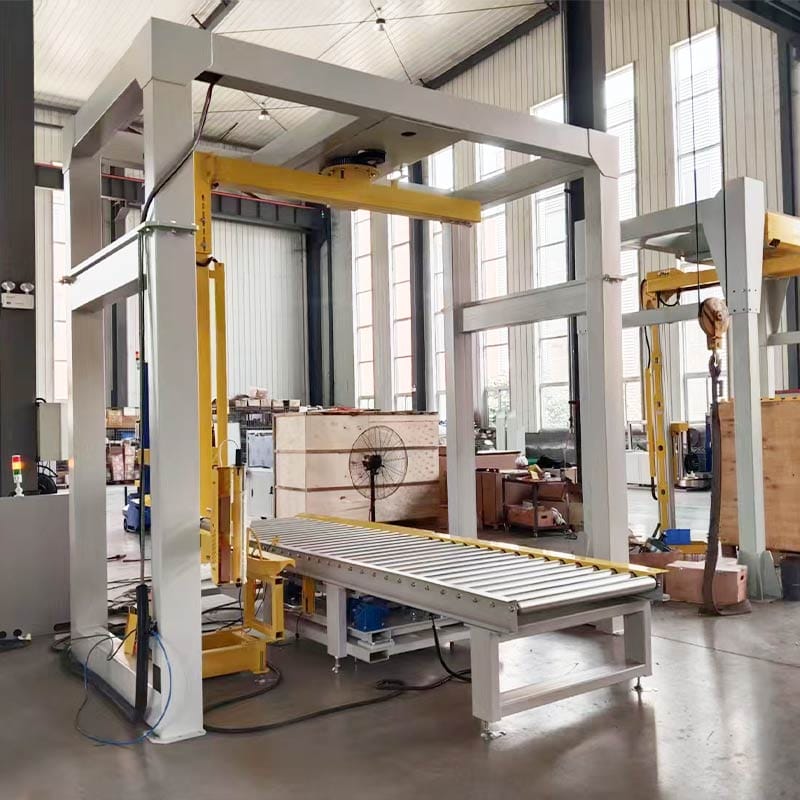

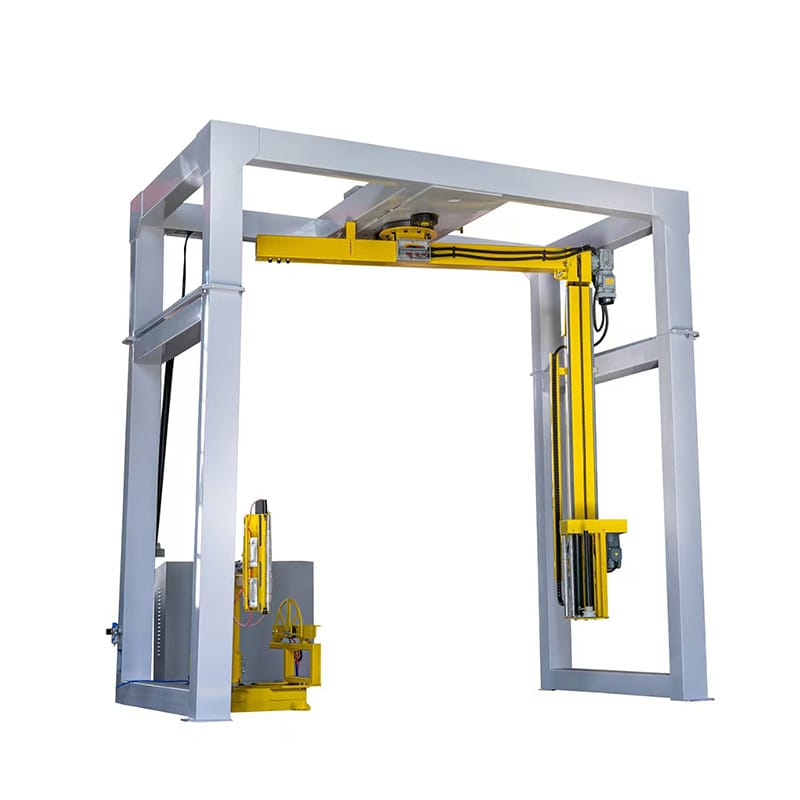

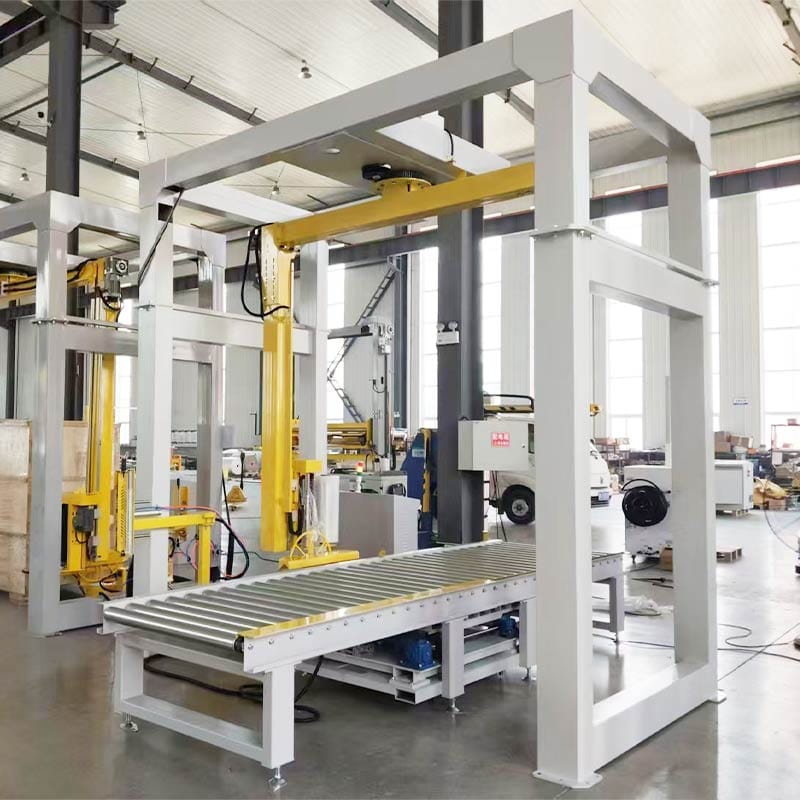

Rotary Arm Wrapping Machine

  • Goods Static Wrapping Design: Arm rotates while goods stay still, no tilt or shift, ideal for heavy, fragile and unstable cargo.
  • High Working Efficiency: High automation level greatly boost packaging speed, save plenty of labor cost.
  • Excellent Protection Effect: Achieve dustproof, moisture-proof and shockproof effect, effectively reduce cargo transit damage.
  • High Film Stretch Saving Cost: Equipped with high pre-stretch structure, lower stretch film consumption and packaging expense.
  • Stable Operation & Easy Operation: PLC touch screen control, simple setting, stable running, long service life.
Quick Link to Products
4 Steps to Customization
  • REQUIREMENT CONSULTATION

    We begin with understanding your needs, goals, and budget to develop a clear and strategic construction plan.

  • SOLUTION DESIGN & QUOTATION

    Our team creates a custom machine proposal, including conveyor dimensions, electrical specs, and your preferred equipment color.

  • PRODUCTION & QUALITY CHECK

    We manufacture your machine with strict quality control, ensuring it meets all agreed parameters and performance standards.

  • DELIVERY & AFTER-SALES SUPPORT

    We deliver the equipment on schedule, with installation guidance, training, and ongoing support to keep your line running smoothly.

Description

Rotary Arm Wrapping Machine is a device that wraps goods by rotating the arm while the goods remain stationary. It is suitable for palletized cargo packaging (such as containerized transportation of bulk goods and packaging of loose pallets) and widely used in industries including glass products, hardware tools, electronics and electrical appliances, papermaking, ceramics, chemicals, food, beverages, and building materials.
It improves logistics efficiency and reduces losses during shipping. Featuring high automation, fast production efficiency, dustproof and moistureproof performance, it also helps lower packaging costs.
ItemSpecification
ModelML-YB1800L
Rotary Diameter1900mm
Wrap Specification1200mm × 1200mm (L×W)
Wrapping Height2000mm / 2400mm / 2800mm
Wrapping Efficiency20-40 pallets/hour
Rotation Speed3-15rpm; variable frequency adjustable
Film Carriage SystemPre-stretch film carriage, pre-stretch rate up to 250%, automatic film feeding, variable frequency speed control
Control SystemPLC control, touch screen display, adjustable wrapping layers/cycles, automatic turntable reset, automatic load height sensing
Air Supply Consumption1000ml/m³
Machine Weight1200KG
Overall Dimensions3400mm × 2000mm × 3100mm
Power / Voltage2.0KW AC220V/50HZ
Optional AccessoriesTop press device / top film covering device
Air Supply Consumption1000ml/m³
Power / Voltage1.5KW AC220V/50HZ
Optional AccessoriesWeighing device / height extension / heavy-duty upgrade
Power / Voltage1.5KW AC220V/50HZ
Optional AccessoriesTop press device / weighing device / height extension / heavy-duty upgrade
