Description
Equipment Composition
- Control System: 1 Set
- Main Unit of Swing Arm Wrapper: 1 Unit
Packaging Process
Preparation
- Thread the stretch film manually.
- Open the electrical control box, switch on the air circuit breaker, then close the box.
- Adjust parameters including top layer cycles, bottom layer cycles and reciprocating times on the control panel according to goods, then press the start button.
Operation
- Move goods to the wrapping position with a pressure trolley, and attach the stretch film to the pallet manually.
- Start the machine. The swing arm rotates around goods while the film feeding motor delivers film to complete wrapping.
- After wrapping, the swing arm returns to the origin. Cut the film manually and transport the finished goods away. One working cycle is completed, and the operation can be repeated continuously.
Film Replacement
Stop the machine and cut off power when the film roll is nearly used up. Replace the film manually and restart from the preparation steps.
Main Performance & Configuration
Technical Parameter
| Item | Specification |
|---|---|
| Max Wrapping Dimension (LWH) | 1400*1400*2000 mm |
| Production Capacity | 1~30 pallets/hour |
| Swing Arm Speed | 0~20 rpm |
| Inner Rotation Diameter | 2000 mm |
| Outer Rotation Diameter | 2400 mm |
| Total Power | 1.5 kW |
| Working Voltage | AC 220V |
| Overall Weight | 1100 kg |
Component Parameters
Swing Arm Assembly
- Made of high-quality steel rectangular tubes; surface treated with baking varnish.
- Connected by slewing bearing for stable operation; speed: 0~15 rpm, stepless frequency conversion & precise positioning.
- Reducer Power: 1.5 kW / 0.75 kW
- Film carriage driven by 08B standard roller chain; lifting speed: 0~56 mm/s, frequency adjustable.
- Lifting worm gear reducer power: 0.37 kW
- Travel limit switches equipped to control the lifting stroke of film carriage.
Film Carriage System
- Fabricated from high-quality steel, with acid pickling, phosphating and plastic spraying treatment.
- Pre-stretch ratio: 1:2.5; automatic & adjustable film feeding.
- Easy film loading; the carriage stops automatically once film is cut.
- Film feeding motor power: 0.2 kW, speed: 0~750 rpm (adjustable).
- Proximity switch for stable film delivery; photoelectric sensor for automatic goods height detection.
Electrical Control System
- Adopts PLC programmable control; wrapping layers and cycles are adjustable.
- Top & bottom wrapping cycles can be set freely.
- Stepless frequency conversion for swing arm rotation and film carriage lifting, easy operation.

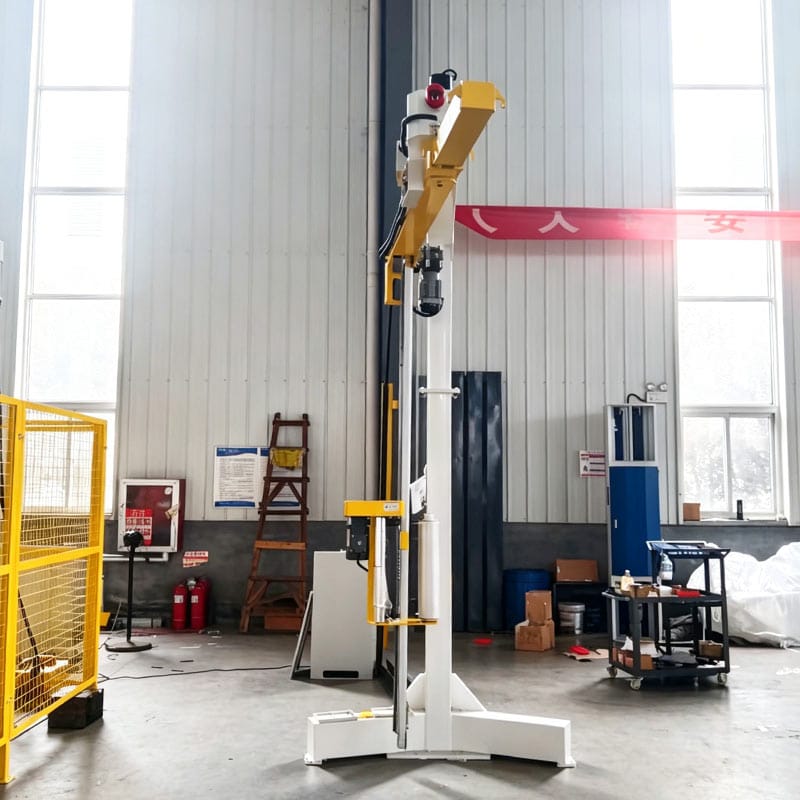

Frame Assembly
- Tripod-type steel structure, equipped with transmission mechanism and reinforced counterweight for stable swing arm operation.
- Swing arm assembly fixed on the frame via slewing bearing.
Packaging Material Requirements
Material: LLDPE Stretch Film
- Film Thickness: 20~30 μm
- Shrinkage: Longitudinal 70%, Transverse 30%
- Tensile Strength: Longitudinal 27 MPa, Transverse 29 MPa
- Elongation at Break: Longitudinal 360%, Transverse 510%
- Film Roll Size: Outer Diameter Φ200~Φ260 mm × Width 500 mm
- Core Size: Inner Diameter Φ76 mm × Width 520 mm
Electrical Components
| Component Name | Brand | Origin |
|---|---|---|
| PLC + Touch Screen | Inovance | China |
| Swing Arm Inverter | Tianchuan | China |
| Lifting Inverter | Tianchuan | China |
| Film Feeding Inverter | Tianchuan | China |
| Photoelectric Switch | OMRON | Japan |
| Proximity Switch | Autonics | South Korea |
| Relay | SCHNEIDER | France |
| Limit Switch | SCHNEIDER | France |
| Emergency Stop Switch | SCHNEIDER | France |
| Swing Arm Motor | Taili | China |
| Film Carriage Motor | Taili | China |
| Lifting Motor | Gexin | China |
Working Conditions
- Power Supply: AC 220V, 50Hz; Voltage Fluctuation: ±10%
- Ambient Temperature: 10~40℃
- Relative Humidity: 10%~90%
